Usually above the ignition switches are circuit protectors, either bush button breakers or fuses. #1 seems to be a battery test switch for checking voltage on one bank or the other. #2 is for checking fuel level on port and starboard tanks. I can't see #3 symbol, maybe a horn, #4 looks like it may be a blower symbol, can't tell #5,6, #7,8 look like blower symbols.
Maybe one of the guys with the same model will chime in.
Welcome to Carver Yachts Owners Forum
We are a boating forum for owners of Carver Yachts to enthusiastically discuss all aspects of Carver Boat ownership. Whether you are looking for your first Carver or currently own one, you are sure to feel at home on CarverYachtOwners.com
You are currently viewing our board as a guest which gives you limited access to view most discussions, articles and access our other FREE features. By joining our free community you will have access to searching the forum topics, post topics, communicate privately with other members (PM), respond to polls, upload your own photos and access many other special features. Registration is fast, simple and absolutely free so please, join our community today!
Trying to learn/fix my Santego
-
Viper
- CYO Supporter
- Posts: 6209
- Joined: July 10th, 2015, 9:58 pm
- Vessel Info: 1989 Carver 3807 Aft Cabin
- Location: Ontario, Canada
- Has thanked: 468 times
- Been thanked: 1765 times
-
ColRon
- Admiral
- Posts: 580
- Joined: April 24th, 2017, 6:06 pm
- Vessel Info: 1989 Carver Santego 3867
“Escape Plan” - Location: Murray, KY
- Has thanked: 77 times
- Been thanked: 157 times
Re: Trying to learn/fix my Santego
I’ll give the switches a try, trying to remember my old 3067. #1. Battery test Momentary switch (Left/right For bank 1 or 2; #2. Fuel gauge momentary switch (left/right for port or starboard tank; #3 horn momentary switch; #4 engine room blower; # 5 nav /anchor light (up for one/down for the other, center off) #6 Panel (gauge) lights; #7 & 8. Bilge pumps down for auto (float) control, up for manual on. Lights above indicate when bilge pumps are running.
Ron
1989 Carver Santego 3867
“Escape Plan”
Murray, KY
1989 Carver Santego 3867
“Escape Plan”
Murray, KY
-
Marcq
Topic author
- Scurvy Dog
- Posts: 34
- Joined: February 24th, 2020, 8:35 pm
- Vessel Info: !989 Carver Santego 30
- Location: Corona.Ca
- Been thanked: 6 times
Re: Trying to learn/fix my Santego
You guys are awesome
Thanks a million
Marc..
Thanks a million
Marc..
-
RGrew176
- Admiral
- Posts: 6544
- Joined: August 17th, 2015, 4:07 am
- Vessel Info: 2023 SunTracker Party Barge 22 DLX
- Location: Southgate, MI.
- Has thanked: 72 times
- Been thanked: 468 times
Re: Trying to learn/fix my Santego
Great knowledgeable people here. A wealth of knowledge they are willing to share.
Rick Grew
2022 Stingray 182 SC
2004 Past Commodore
West River Yacht & Cruising Club
2022 Stingray 182 SC
2004 Past Commodore
West River Yacht & Cruising Club
-
Marcq
Topic author
- Scurvy Dog
- Posts: 34
- Joined: February 24th, 2020, 8:35 pm
- Vessel Info: !989 Carver Santego 30
- Location: Corona.Ca
- Been thanked: 6 times
Re: Trying to learn/fix my Santego
Great knowledgeable people here. A wealth of knowledge they are willing to share
Yes, first thing I did when I bought the boat is join this community
Marc..
-
Marcq
Topic author
- Scurvy Dog
- Posts: 34
- Joined: February 24th, 2020, 8:35 pm
- Vessel Info: !989 Carver Santego 30
- Location: Corona.Ca
- Been thanked: 6 times
Re: Trying to learn/fix my Santego
Guys!! Me again. So I check in the owners manual instrument wiring diagram to find the correct breaker I need for the ignition, not sure of the symbol that represent the breaker, is it possible that I need 20Amp breakers? Seems high
Marc..
Marc..
-
bud37
- Admiral
- Posts: 5122
- Joined: April 23rd, 2015, 10:22 pm
- Has thanked: 597 times
- Been thanked: 1281 times
Re: Trying to learn/fix my Santego
So you again huh.......
Your old breakers there may still have some ID on them as to the spec/ rating.......can you see anything on there ?
Your old breakers there may still have some ID on them as to the spec/ rating.......can you see anything on there ?
FWIW.....The above is just my opinion.
-
Marcq
Topic author
- Scurvy Dog
- Posts: 34
- Joined: February 24th, 2020, 8:35 pm
- Vessel Info: !989 Carver Santego 30
- Location: Corona.Ca
- Been thanked: 6 times
Re: Trying to learn/fix my Santego
bud37 wrote:So you again huh.......
Your old breakers there may still have some ID on them as to the spec/ rating.......can you see anything on there ?

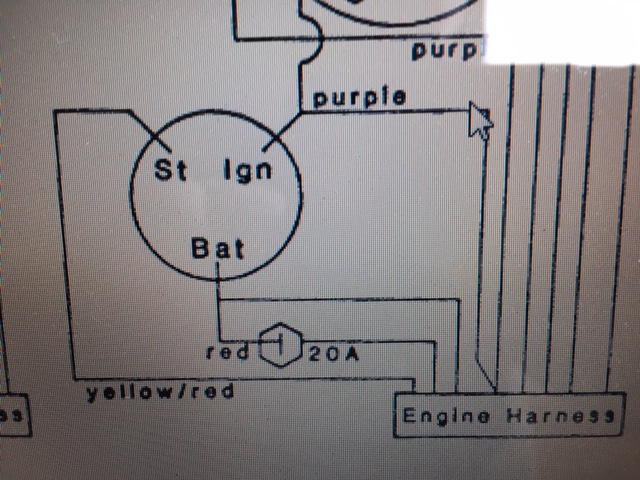

Edit: was able to take a pic of the diagram
The old one which were not the original are rated 15A
Thanks, Marc..
